Introduction

InvoiceFlow is a simple, single-application invoice management system built on Laravel 12. Every sale becomes an invoice you can print, download as a PDF, or settle later against a customer account. It covers the day-to-day invoicing of a small retail or service business:

🖥️

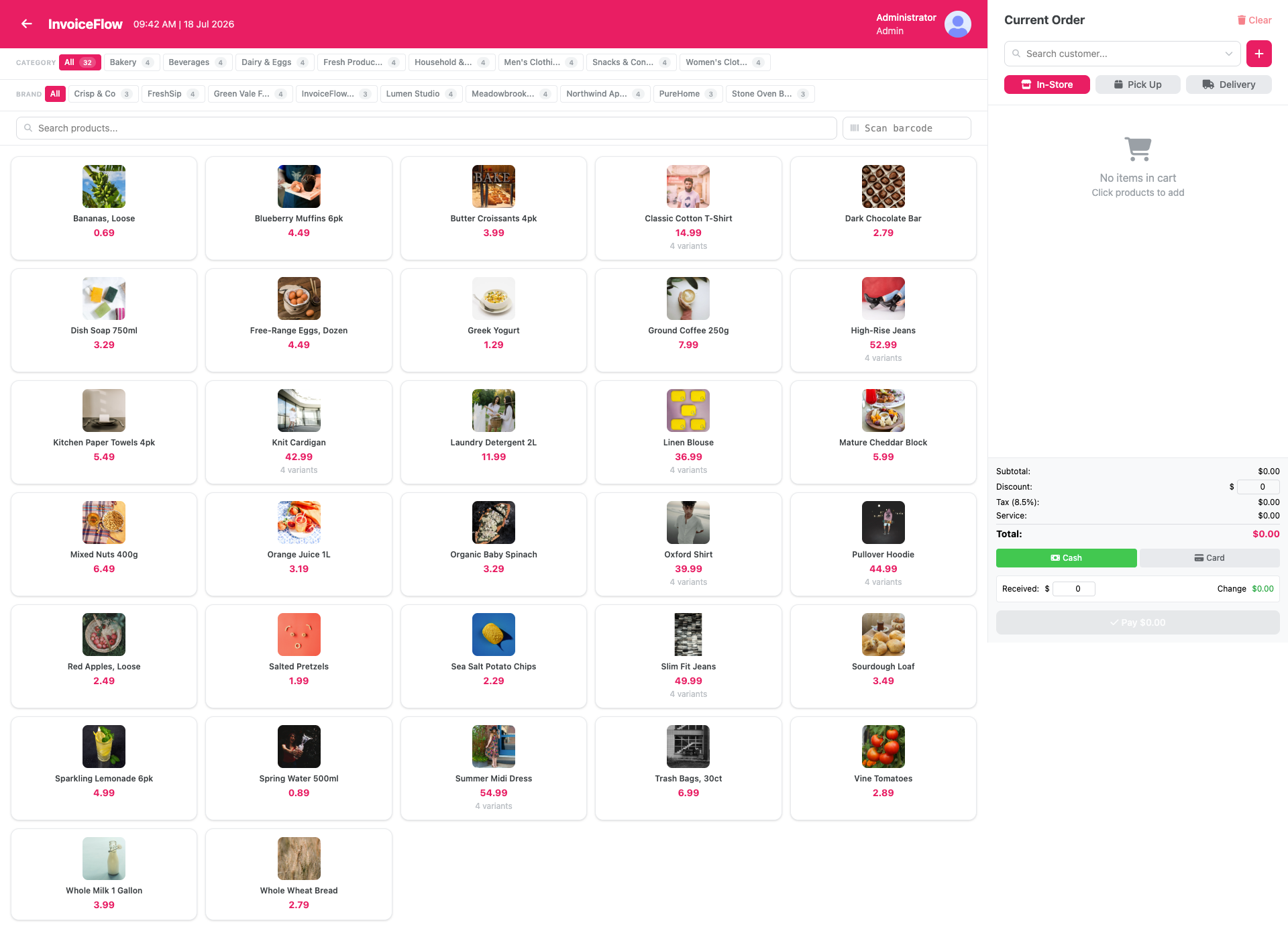

Invoice Terminal

Barcode scanning, cash and card tenders, A4 PDF invoices, thermal receipts, and register shifts.

📦

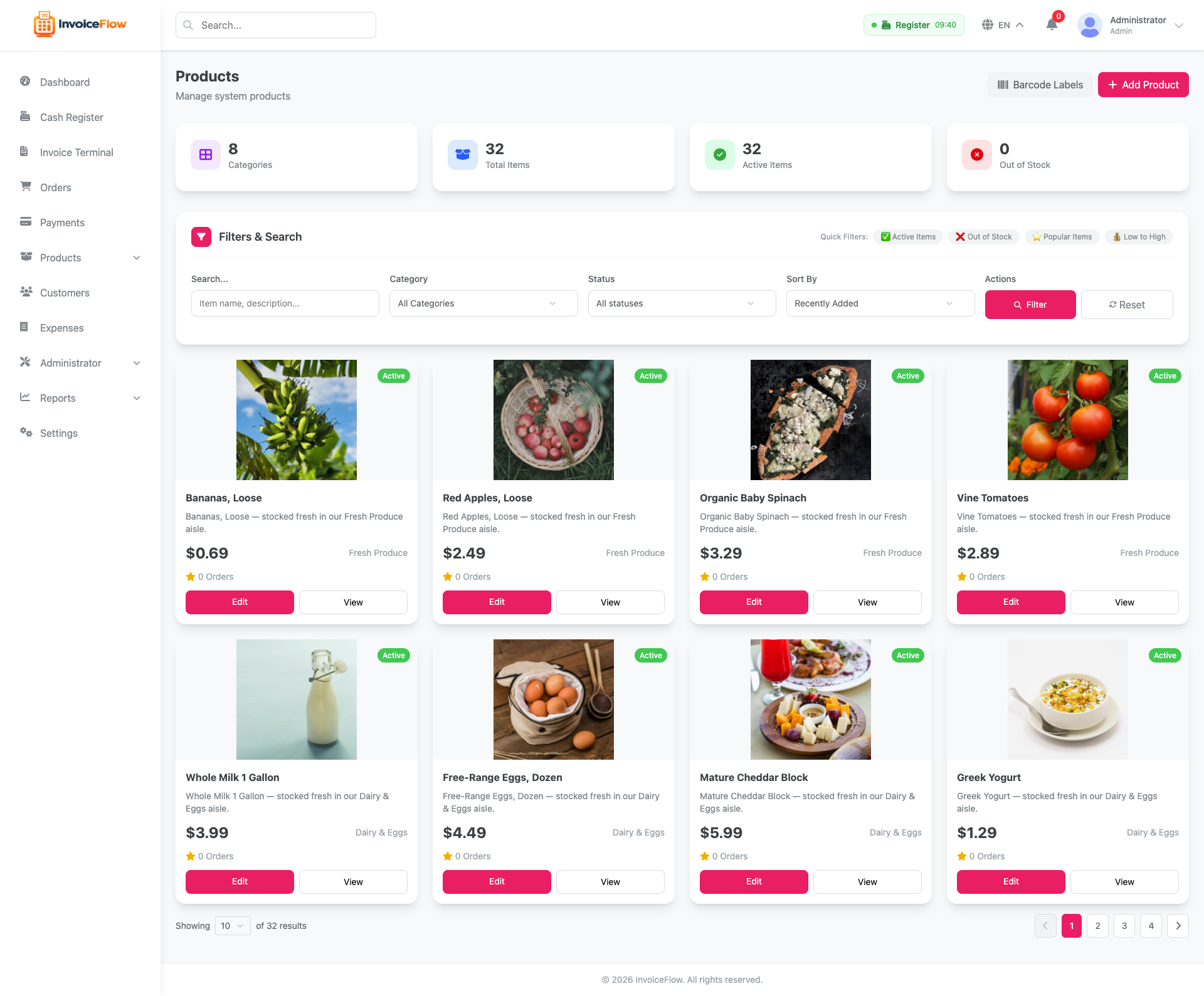

Product Catalog

Products with variants, add-ons, categories, brands, tags, and units of measure.

📈

Reports & Admin

Order, product, customer, user, and expense reports over any date range.

Note on stock: InvoiceFlow tracks products and prices, not stock quantities. A product carries an availability flag rather than an on-hand count, so there is no warehouse, stock-level, purchase-order, supplier or reorder functionality.

Everything runs as one Laravel application — no separate frontend server required, and the admin and invoice terminal work in a phone browser. Follow this documentation to install and configure InvoiceFlow on your server.

🏗️

System Architecture

InvoiceFlow is a monolithic Laravel application — one codebase, one deployment. Livewire handles reactive UI components server-side, so no separate JS build server is needed in production.

Browser

← HTTP / WebSocket →

⚡ Laravel 12 + Livewire

← SQL →

🗄️ MySQL

What's Included

✓ Laravel 12 full source code
✓ Web installer wizard
✓ Pre-seeded demo data (optional)
✓ Documentation

Tech Stack

• PHP 8.2+ / Laravel 12
• Livewire 4 / Alpine.js
• Tailwind CSS v4
• MySQL 5.7+ / MariaDB
• Server-side barcode generation (picqer/php-barcode-generator)

📋

Changelog

v1.0.0 Initial Release — 2026-07-18

✓ Invoice terminal — Livewire invoice screen with cash and card tenders, per-line customization notes, and invoice editing
✓ Product catalog — products with variants, add-ons, warranty, categories, brands, tags and units
✓ Barcode — scan-to-search on the invoice terminal, plus printable barcode label sheets (server-side SVG generation)

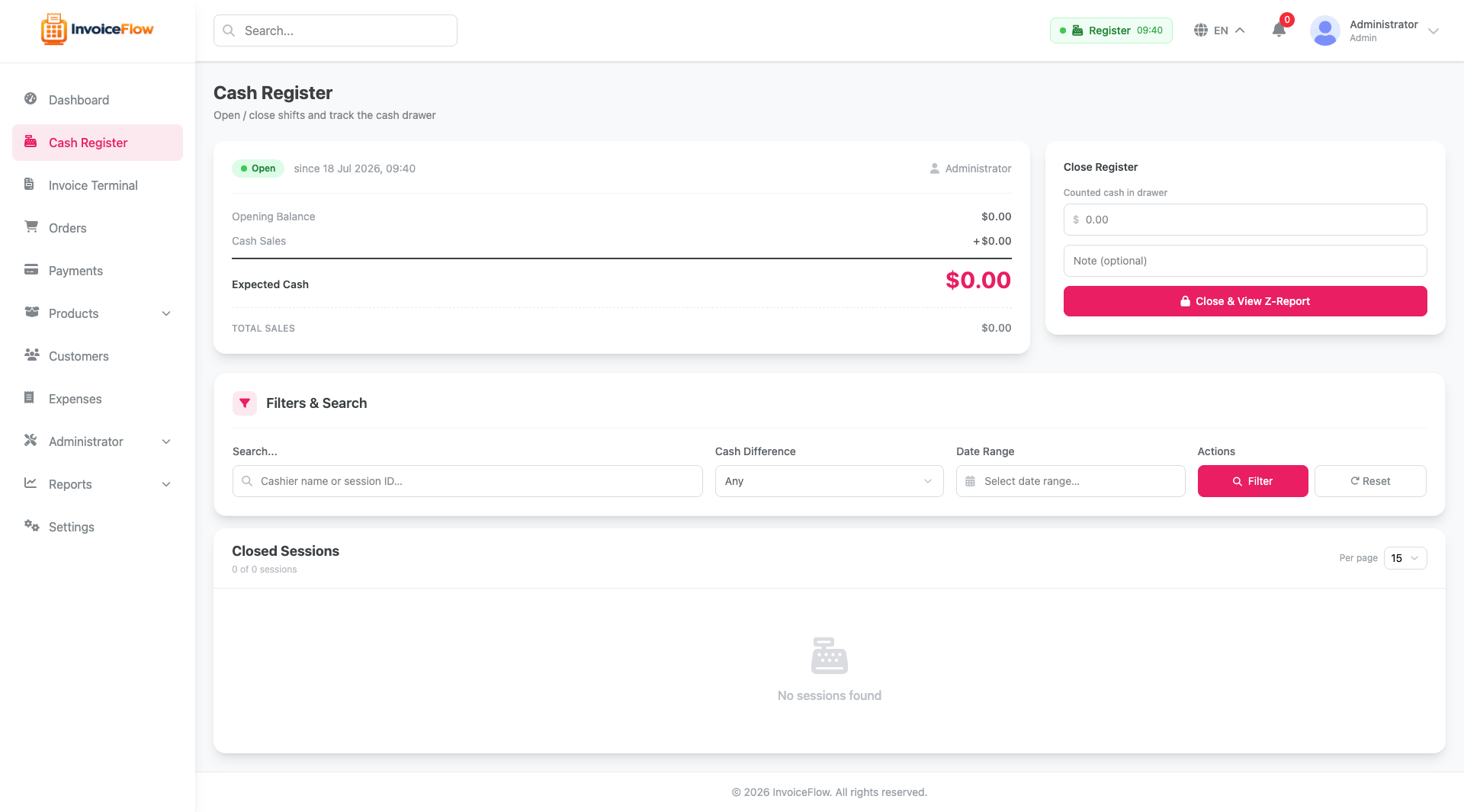

✓ Cash register / shifts — open & close register sessions, cash in/out movements, printable Z-Report. Refunded and cancelled orders are excluded from expected drawer cash
✓ Customer accounts — due/credit ledger, loyalty points (earn on sale, redeem for value), per-customer ledger view
✓ Order statuses & payments — configurable statuses with history, and a payments screen filterable by payment date
✓ Expense management — expense categories and expenses with date filtering
✓ Reports — Order, Product, Customer, User and Expense reports over a selectable date range
✓ Invoices & receipts — A4 PDF invoices and 80mm / 58mm thermal receipts

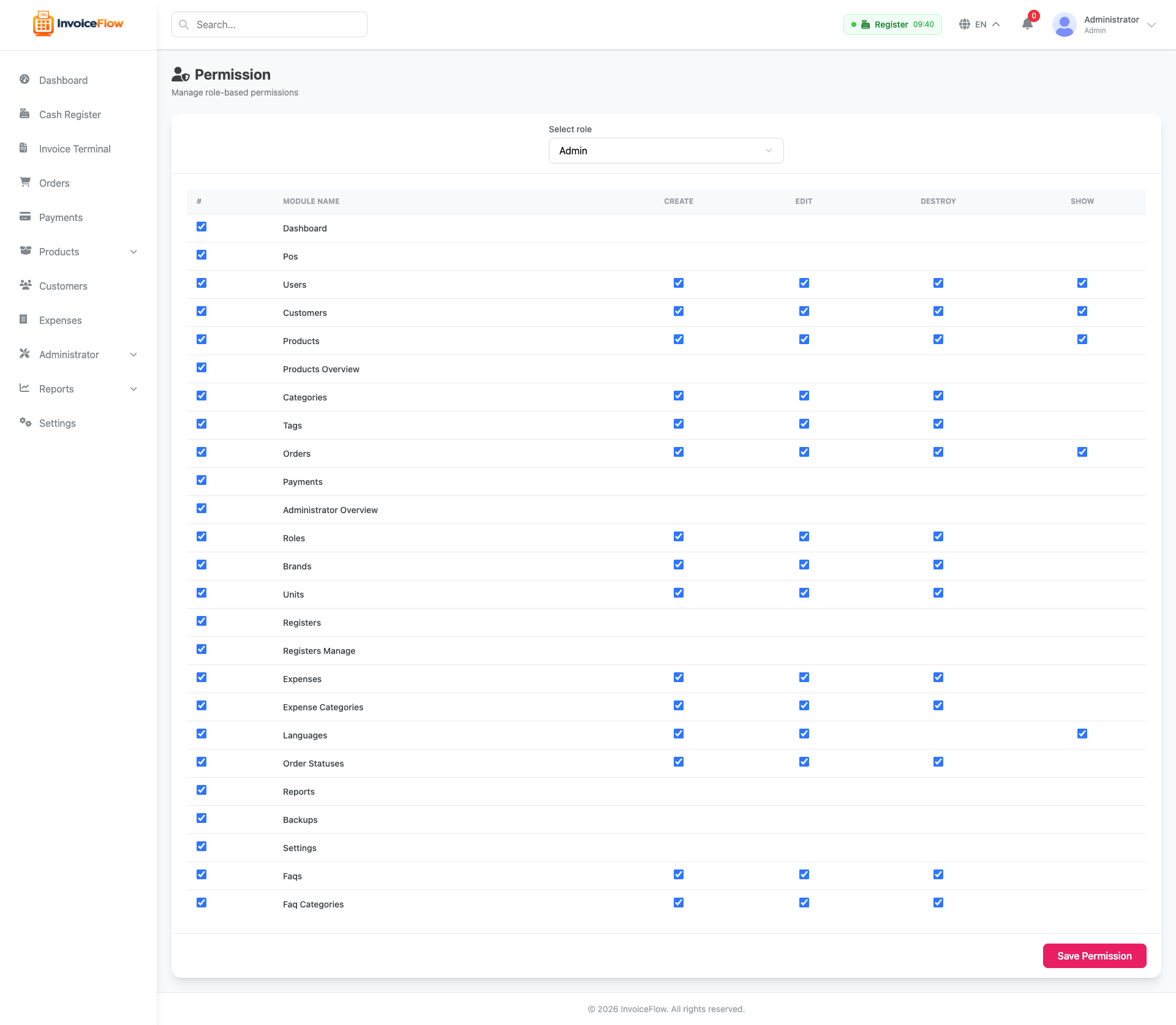

✓ Customers, users, roles & permissions — granular permissions with staff/customer separation enforced on web and API
✓ Multi-language, settings, REST API — six languages with RTL support, DB-backed settings, and a Sanctum-authenticated /api/v1
✓ FAQ management — admin-managed help content with categories
✓ Web installer — browser-based multi-step setup wizard (requirements, purchase verification, database, admin, finish)
✓ Database backup & restore — admin-initiated SQL dump/restore (no shell access required)
✓ Activity log & notifications — audit trail of admin actions and in-app notifications

🖥️

Server Requirements (VPS)

Minimum recommended specs for running InvoiceFlow (Laravel + MySQL) on a VPS.

🧠

CPU

1 vCPU minimum. 2 vCPUs recommended for production.

💾

RAM

1 GB minimum. 2 GB recommended.

🐧

OS

Ubuntu 22.04 LTS (recommended) or Debian 12.

Stack installed: Nginx · PHP 8.3 · MySQL 8 · Composer · Certbot

⚠️

Important Server Documentation

Follow these notes when the application shows a server error.

500 Internal Server Error — Common Fix

The most common cause is a missing .env file or missing Laravel app key:

# 1. Generate .env from the example file

cp .env.example .env

# 2. Generate the application key

php artisan key:generate

Then update .env with your database credentials before continuing.

Storage Permissions

File uploads and cache will fail if storage folder permissions are wrong:

chmod -R 775 storage bootstrap/cache

chown -R www-data:www-data storage bootstrap/cache

🌐

Install & Configure Nginx

1. Install Nginx

sudo apt update
sudo apt install -y nginx
sudo systemctl enable nginx
sudo systemctl start nginx

2. Virtual host — /etc/nginx/sites-available/yourdomain.com

server {
    listen 80;
    server_name yourdomain.com www.yourdomain.com;
    root /var/www/invoiceflow/public;
    index index.php;

    add_header X-Frame-Options "SAMEORIGIN";
    add_header X-Content-Type-Options "nosniff";

    location / {
        try_files $uri $uri/ /index.php?$query_string;
    }

    location ~ \.php$ {
        include snippets/fastcgi-php.conf;
        fastcgi_pass unix:/var/run/php/php8.3-fpm.sock;
    }

    location ~ /\.ht { deny all; }
}

3. Enable site & reload

sudo ln -s /etc/nginx/sites-available/yourdomain.com /etc/nginx/sites-enabled/
sudo nginx -t
sudo systemctl reload nginx

🗄️

Install & Configure MySQL

1. Install MySQL 8

sudo apt install -y mysql-server
sudo systemctl enable mysql
sudo mysql_secure_installation

2. Create database & user

sudo mysql -u root -p

CREATE DATABASE invoiceflow CHARACTER SET utf8mb4 COLLATE utf8mb4_unicode_ci;
CREATE USER 'invoiceflow_user'@'localhost' IDENTIFIED BY 'StrongPassword!';
GRANT ALL PRIVILEGES ON invoiceflow.* TO 'invoiceflow_user'@'localhost';
FLUSH PRIVILEGES;
EXIT;

3. Update Laravel .env

DB_CONNECTION=mysql
DB_HOST=127.0.0.1
DB_PORT=3306
DB_DATABASE=invoiceflow
DB_USERNAME=invoiceflow_user
DB_PASSWORD=StrongPassword!

🐘

Install PHP & Extensions

InvoiceFlow requires PHP 8.2 or higher. The commands below install PHP 8.3 (recommended) with all required extensions.

sudo apt install -y software-properties-common
sudo add-apt-repository ppa:ondrej/php
sudo apt update
sudo apt install -y php8.3 php8.3-fpm php8.3-mysql php8.3-mbstring \
  php8.3-xml php8.3-bcmath php8.3-curl php8.3-zip php8.3-gd php8.3-intl

sudo systemctl enable php8.3-fpm
sudo systemctl start php8.3-fpm

Verify: php -v should show PHP 8.3.x

🎼

Install Composer

curl -sS https://getcomposer.org/installer | php
sudo mv composer.phar /usr/local/bin/composer
composer --version

Then inside your project directory:

cd /var/www/invoiceflow
composer install --optimize-autoloader --no-dev

🌍

Domain & DNS Configuration

Point your domain to the VPS IP via your registrar's DNS panel.

Type	Name / Host	Value	TTL
A	@	YOUR_VPS_IP	Auto
A	www	YOUR_VPS_IP	Auto

DNS propagation can take up to 48 hours. Check with dig yourdomain.com.

🔒

SSL Setup with Certbot (HTTPS)

1. Install Certbot

sudo apt install -y certbot python3-certbot-nginx

2. Obtain certificate

sudo certbot --nginx -d yourdomain.com -d www.yourdomain.com

3. Verify & test auto-renewal

sudo nginx -t && sudo systemctl reload nginx
sudo certbot renew --dry-run

After SSL: Update APP_URL=https://yourdomain.com in your Laravel .env and clear cache: php artisan config:clear

✅

Shared Hosting Requirements

Confirm your cPanel environment supports the following before deploying.

Laravel / InvoiceFlow

✓ PHP 8.2+ via MultiPHP or PHP Selector
✓ MySQL 5.7+ or MariaDB
✓ Composer (SSH Terminal)
✓ SSH Terminal access (cPanel → Terminal)
✓ Addon Domain / Subdomain creation
✓ File Manager or FTP access
✓ AutoSSL / Let's Encrypt SSL

⚡

Laravel Setup on cPanel

Deploy InvoiceFlow on shared hosting step by step.

1

Create Domain & Point to `public/`

In cPanel → Domains, add your domain and set its Document Root to the project's public/ folder:

/home/yourusername/invoiceflow/public

2

Upload Project Files

Upload the ZIP via cPanel → File Manager then extract:

cd ~/invoiceflow
unzip invoiceflow.zip -d .
rm invoiceflow.zip

3

Set PHP Version to 8.2+

In cPanel → MultiPHP Manager (or PHP Selector), select your domain and set PHP to 8.2 or newer. Enable extensions: pdo_mysql mbstring xml curl zip gd bcmath fileinfo.

4

Create MySQL Database

cPanel → MySQL Databases:

Create database: yourusername_invoiceflow
Create user with a strong password
Add user to database with All Privileges

5

Configure .env

Rename .env.example → .env and edit:

# App
APP_NAME="InvoiceFlow"
APP_ENV=production
APP_DEBUG=false
APP_URL=https://yourdomain.com

# Database
DB_CONNECTION=mysql
DB_HOST=127.0.0.1
DB_PORT=3306
DB_DATABASE=yourusername_invoiceflow
DB_USERNAME=yourusername_dbuser
DB_PASSWORD=StrongPassword!

# Mail (optional)
MAIL_MAILER=smtp
MAIL_HOST=mail.yourdomain.com
MAIL_PORT=587
[email protected]
MAIL_PASSWORD=your_email_password
[email protected]

6

Install Composer & Run Artisan

cd ~/invoiceflow

curl -sS https://getcomposer.org/installer | php
php composer.phar install --optimize-autoloader --no-dev

php artisan key:generate
php artisan migrate --force
php artisan db:seed --force
php artisan storage:link
php artisan optimize

7

Set Permissions & Enable SSL

chmod -R 755 storage bootstrap/cache

Enable SSL via cPanel → SSL/TLS → AutoSSL or Let's Encrypt.

✓

Test the Installation

Visit your domain — you should see the login page:

https://yourdomain.com

✅

Server Requirements

Verify your hosting environment before installation.

PHP & Extensions

✓ PHP 8.2 or higher
✓ OpenSSL
✓ PDO + PDO_MySQL Extension
✓ Mbstring Extension
✓ Tokenizer Extension
✓ XML Extension
✓ Ctype Extension
✓ cURL Extension
✓ JSON Extension
✓ BCMath Extension
✓ Fileinfo Extension
✓ ZIP Extension
✓ GD Extension

Database & Server

✓ MySQL 5.7+ or MariaDB
✓ Composer 2.x
✓ Apache or Nginx
✓ SSL Certificate (HTTPS)
✓ 512MB+ RAM

🚀

Installation Guide

Deploy InvoiceFlow on your VPS. You can use the web installer (no SSH needed for setup) or install manually via SSH.

1

Download from Envato

Log in to CodeCanyon → Downloads → InvoiceFlow → Download All Files & Documentation. Extract the ZIP.

2

Upload Project to Server

Option A — SCP / FTP

scp invoiceflow.zip user@YOUR_VPS_IP:/var/www/
ssh user@YOUR_VPS_IP
cd /var/www && unzip invoiceflow.zip -d invoiceflow

Option B — Git

sudo mkdir -p /var/www/invoiceflow
cd /var/www/invoiceflow
sudo git clone https://github.com/your-repo/invoiceflow.git .

3

Configure .env & Choose Install Method

Option A — Web Installer

Copy .env.example → .env, then visit the installer in your browser and follow the on-screen steps — no SSH needed for the rest of the setup:

https://yourdomain.com/install

Installer Steps Preview

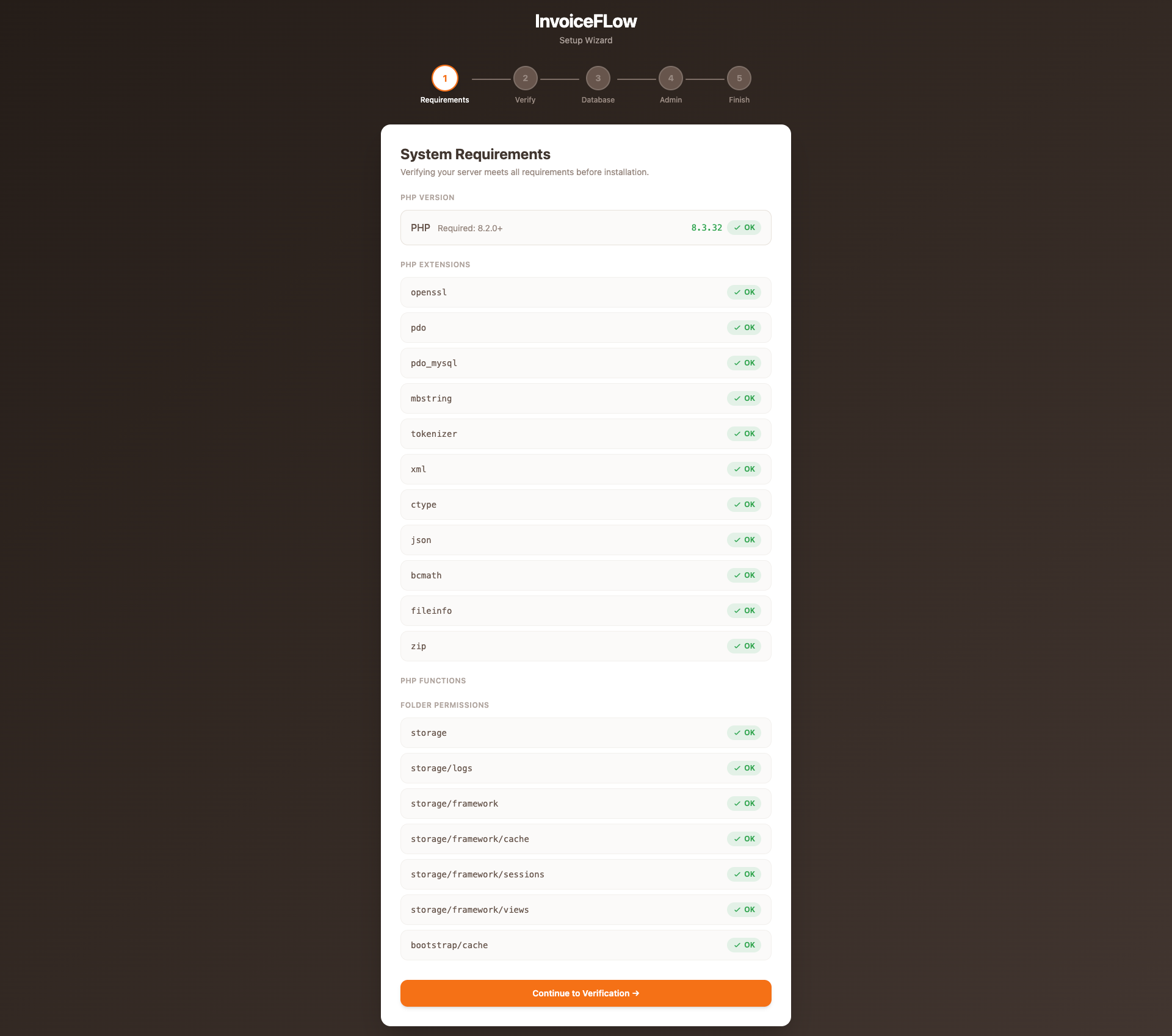

Step 1 — System Requirements

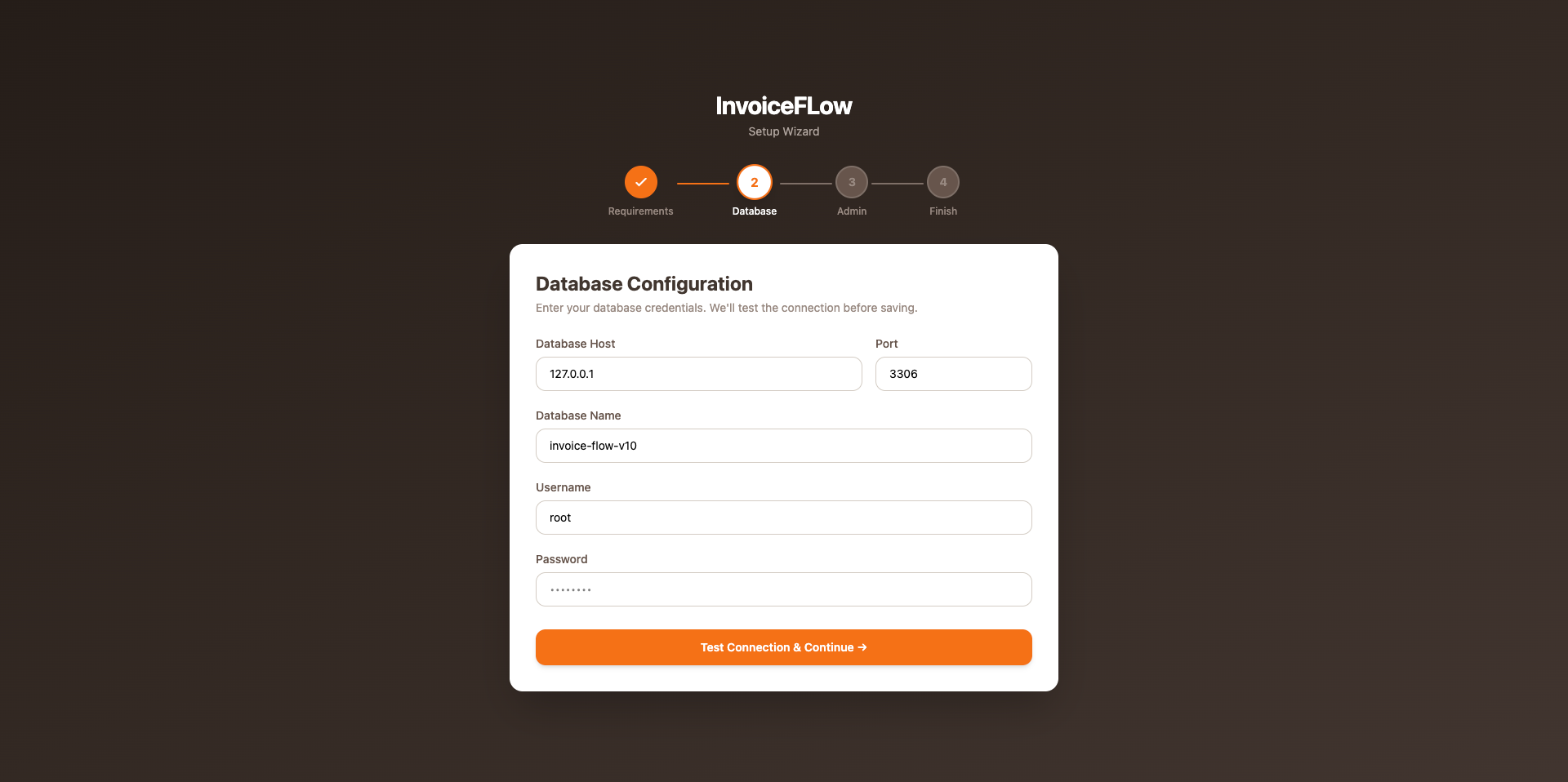

Step 2 — Purchase & Database

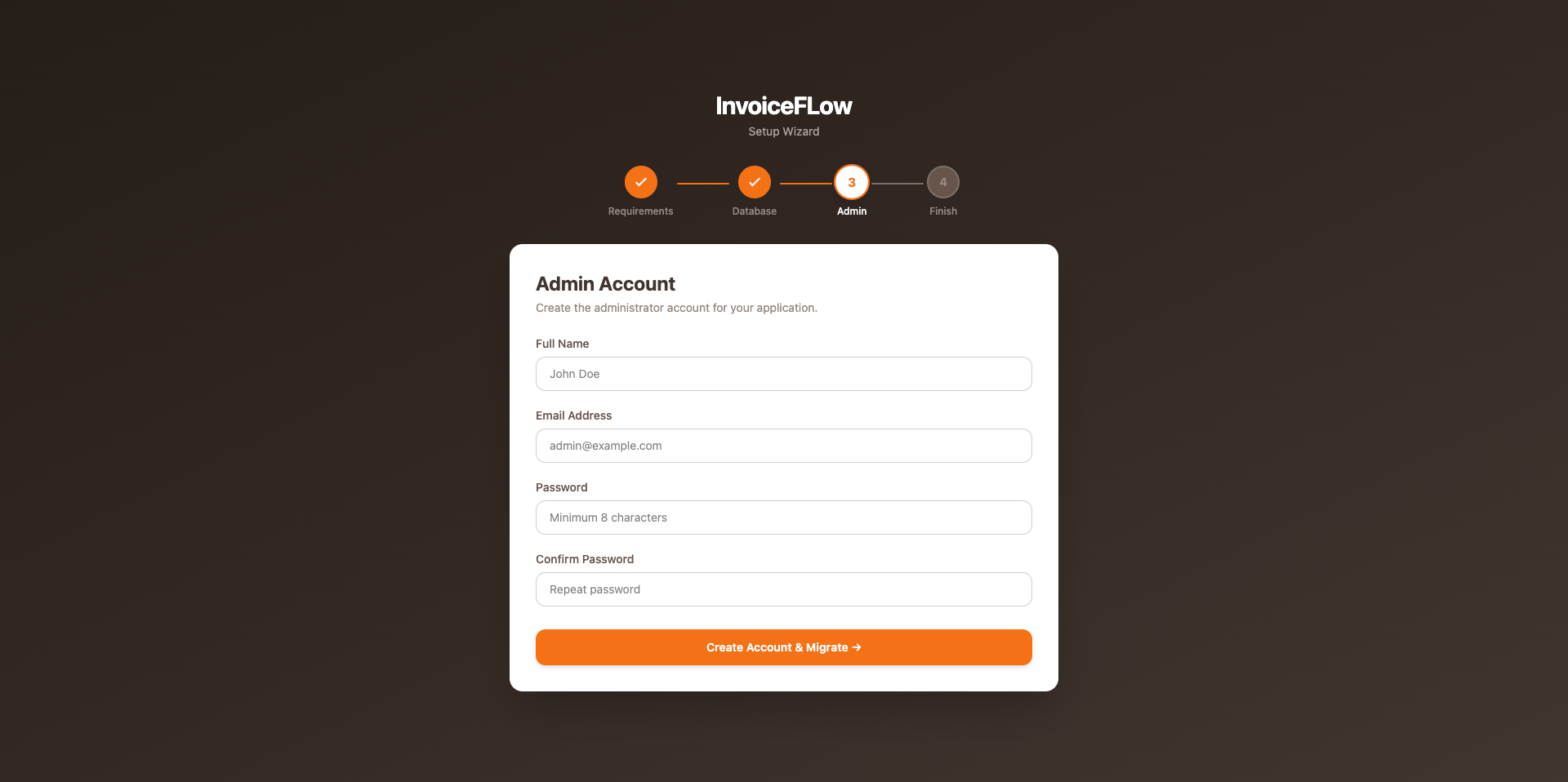

Step 3 — Admin Account

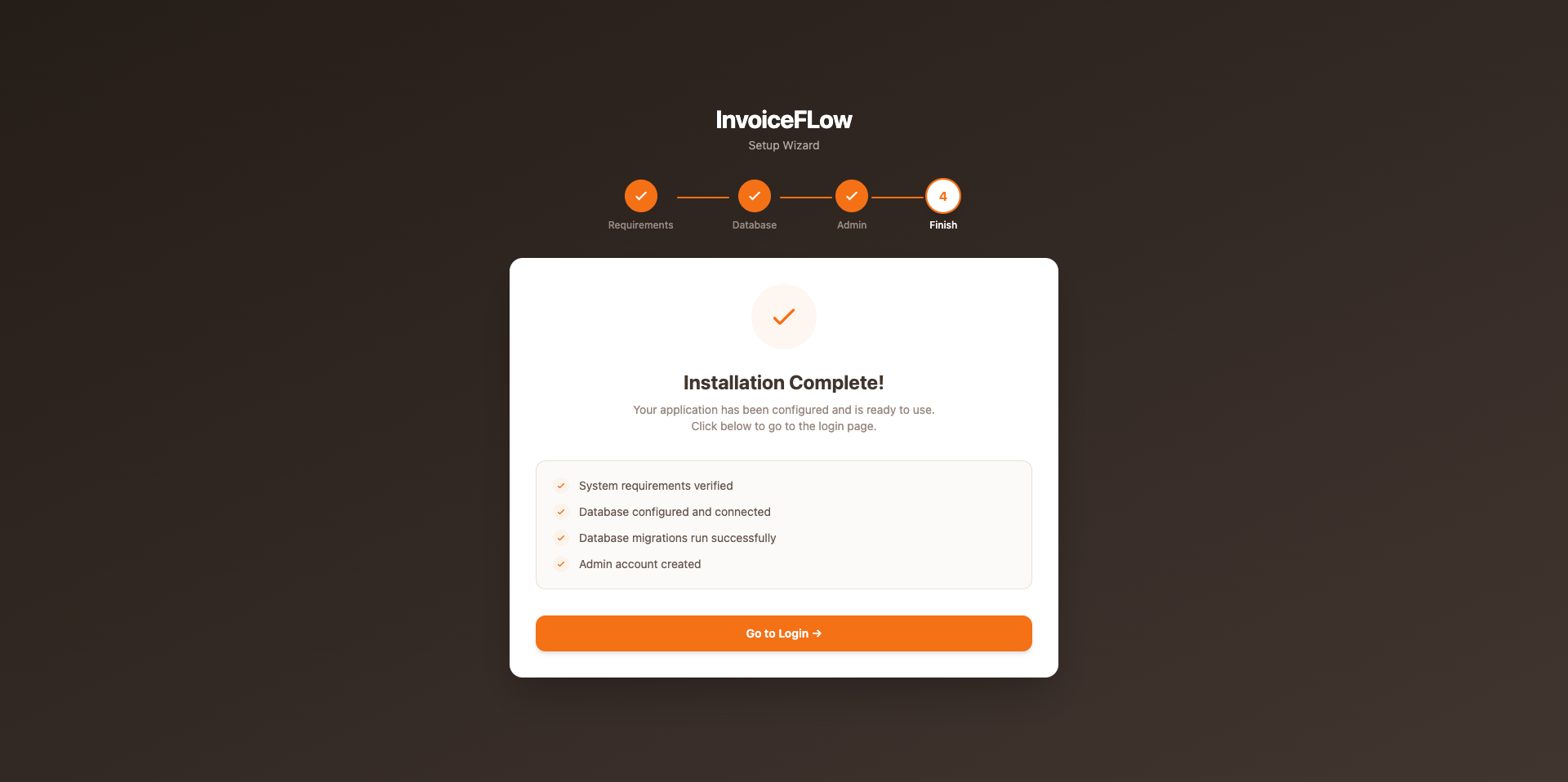

Step 4 — Installation Complete

Option B — Manual (SSH)

Copy and edit .env via SSH, then run artisan commands:

cd /var/www/invoiceflow
cp .env.example .env
nano .env   # set APP_URL, DB_* values

composer install --optimize-autoloader --no-dev
php artisan key:generate
php artisan migrate --force
php artisan db:seed --force
php artisan storage:link
php artisan optimize

4

Set Folder Permissions

chmod -R 775 storage bootstrap/cache
chown -R www-data:www-data storage bootstrap/cache

✓

Test the Installation

Open your browser and visit the admin panel — you should see the login page.

https://yourdomain.com

⚠️

Before going live, verify:

APP_DEBUG=false
Storage symlink exists: ls -la public/storage
Folder permissions set on storage/ and bootstrap/cache/
SSL certificate active

⚙️

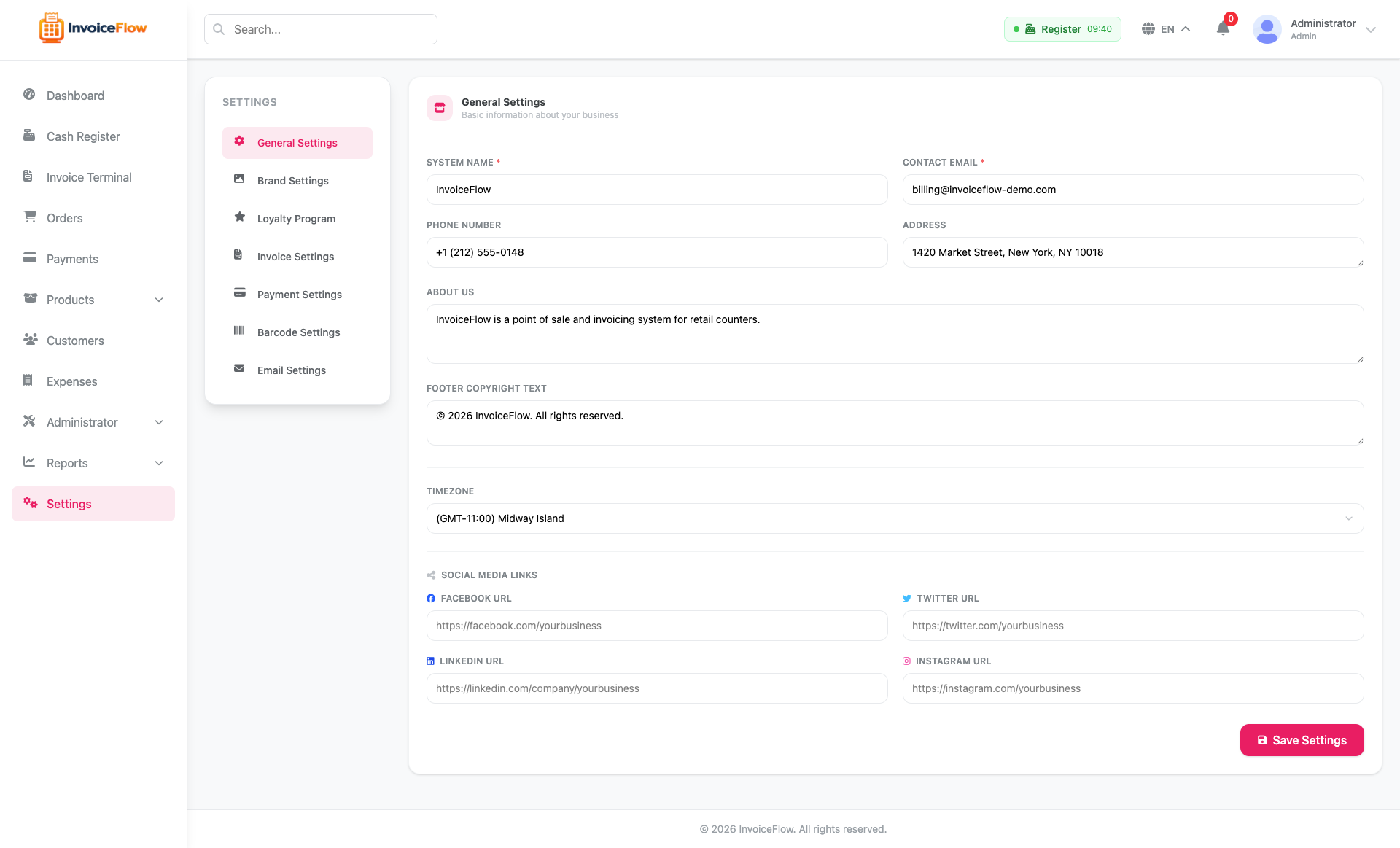

Configuration

Key settings available from Admin → Settings after installation.

General Settings

• Store name, logo, currency, timezone
• Tax rate and tax name
• Service fee applied at checkout
• Loyalty points rate (earn per sale amount) and redemption rate
• Receipt header / footer text
• Default language

Thermal Receipt Printer

Configure from Settings → Receipt Settings. Choose paper width (80mm or 58mm) and enable auto-print after an invoice is completed.

Thermal printing uses the browser's print dialog. Connect your printer to the cashier's machine and set it as the default printer in the OS for seamless auto-print.

Mail (SMTP)

Set in your .env file:

MAIL_MAILER=smtp
MAIL_HOST=smtp.mailtrap.io
MAIL_PORT=587
MAIL_USERNAME=your_username
MAIL_PASSWORD=your_password
[email protected]
MAIL_FROM_NAME="InvoiceFlow"

⏱️

Queue Worker & Background Jobs

InvoiceFlow ships with QUEUE_CONNECTION=sync in .env — emails and notifications are sent immediately during the request, so everything works out of the box with no worker process and no extra setup.

When to change this: if sending mail makes checkout or other pages feel slow, switch to background sending. This is optional — most shops can stay on sync.

1. Enable background sending

Set the queue driver to database in your .env, then clear the config cache:

QUEUE_CONNECTION=database

php artisan config:clear

Queued jobs are now stored in the database — but they only run while a queue worker is running. Pick one of the options below.

2a. Recommended (VPS): Supervisor

Supervisor keeps the worker alive permanently and restarts it if it crashes:

sudo apt install -y supervisor
sudo nano /etc/supervisor/conf.d/invoiceflow-worker.conf

[program:invoiceflow-worker]
process_name=%(program_name)s_%(process_num)02d
command=php /var/www/invoiceflow/artisan queue:work database --sleep=3 --tries=3 --max-time=3600
autostart=true
autorestart=true
stopasgroup=true
killasgroup=true
user=www-data
numprocs=1
redirect_stderr=true
stdout_logfile=/var/www/invoiceflow/storage/logs/worker.log
stopwaitsecs=3600

sudo supervisorctl reread
sudo supervisorctl update
sudo supervisorctl start invoiceflow-worker:*

2b. Fallback (shared hosting): Cron

No Supervisor on shared hosting? Add a cron job (cPanel → Cron Jobs) that drains the queue every minute and exits when it's empty:

* * * * * php /home/yourusername/invoiceflow/artisan queue:work --stop-when-empty

Adjust the path to your installation. Emails may be delayed by up to a minute — acceptable for most stores.

Remember: after deploying code changes, restart the worker (sudo supervisorctl restart invoiceflow-worker:* or php artisan queue:restart) so it picks up the new code.

✨

Features

All modules available in InvoiceFlow v1.0.0.

📊 Overview

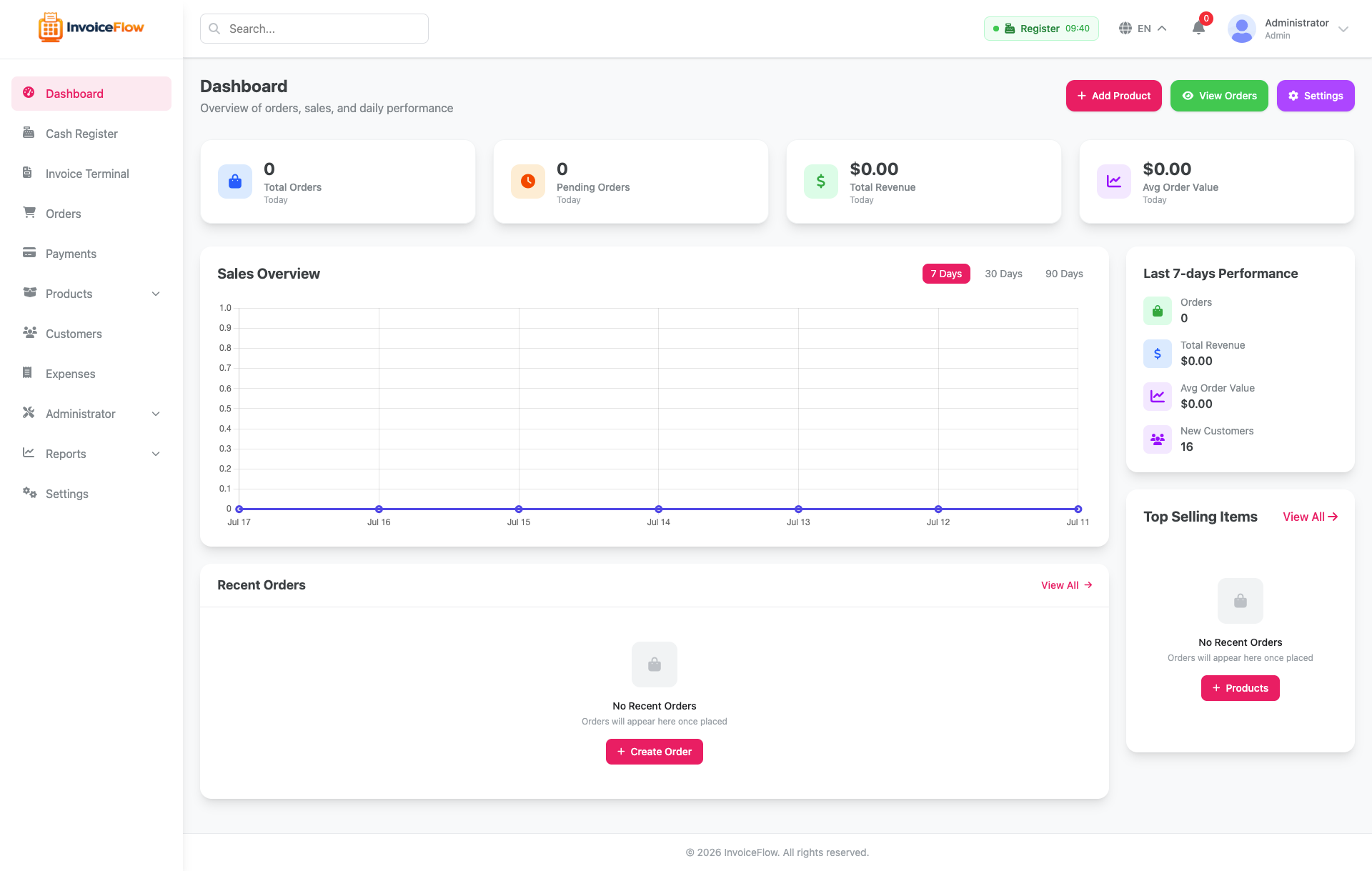

Dashboard

Real-time overview of store performance — today's revenue, orders, and top products.

✓ Daily, weekly, and monthly revenue charts
✓ Total orders and top-selling products
✓ Recent order activity feed

🧾 Invoicing

Invoice Terminal

Fast invoice screen with barcode scan-to-add, discounts, and instant A4 PDF or thermal receipt printing.

✓ Barcode scan-to-search (USB/Bluetooth scanner)
✓ Cash and card tenders, with change due on cash
✓ 80mm / 58mm thermal receipt + A4 PDF
✓ Redeem customer loyalty points against an invoice
✓ Tax and service fee applied server-side from settings

📦 Catalog

Product Catalog

Full product catalog with categories, brands, tags, units, variants and add-ons. Products carry a price and an availability flag — not a stock count.

✓ Products with variants, add-ons, and images
✓ Categories, brands, tags, and units of measure
✓ Warranty period carried through to order lines
✓ Availability flag to hide a product from the invoice terminal
✓ Printable barcode label sheets (server-side SVG)

🏧 Register

Cash Register & Shifts

Shift management with opening cash, in/out movements, and a printable Z-Report on close.

✓ Open/close register sessions with opening cash
✓ Cash in/out movements during shift
✓ Printable Z-Report on close
✓ Refunded and cancelled orders excluded from expected cash
✓ Payment status reflects partial and full refunds

👥 Customers

Customer Accounts & Loyalty

Run customer tabs with a due/credit ledger, and reward repeat business with loyalty points.

✓ Per-customer due/credit ledger with statement view
✓ Record payments and add charges against an account
✓ Loyalty points earned on sale, redeemable for value
✓ Points re-settle automatically when an order is edited

🔐 Access

Roles & Permissions

Fine-grained role-based access control — define exactly what each staff member can see and do.

✓ Unlimited custom roles (cashier, manager, admin)
✓ Toggle individual permissions per role
✓ Assign multiple roles to one user
✓ Activity log of all admin actions

⚙️ Config

Settings & Utilities

Store settings, multi-language management, database backup/restore, and more — all from the admin panel.

✓ Store info, currency, tax, and receipt settings
✓ Loyalty points earn/redeem rates
✓ Multi-language with admin-editable translations
✓ Database backup & restore (no shell needed)

🔌

REST API

InvoiceFlow ships a token-authenticated REST API under /api/v1, built on Laravel Sanctum. It is available for your own integrations and mobile clients. No extra setup is needed — it is enabled on every install.

Getting a token

curl -X POST https://yourdomain.com/api/v1/login \
  -H "Accept: application/json" \
  -d "[email protected]&password=your-password"

# -> { "token": "1|abcdef...", "user": { ... } }

Send it on every subsequent request:

curl https://yourdomain.com/api/v1/products \
  -H "Accept: application/json" \
  -H "Authorization: Bearer 1|abcdef..."

Endpoint groups

Group	Auth	What it covers
basic-info, categories, products, languages	None	Public catalog and store settings
login, register, forgot-password	None	Issue a token (throttled 10/min)
profile, orders	Bearer	The signed-in customer's own data only
staff/*	Bearer + permission	Store-wide: products, categories, barcode scan, customers, orders, FAQs. Each endpoint checks the caller's role permissions

Rate limits: 60 requests/minute on public and authenticated endpoints; 10/minute on login and register. List endpoints accept per_page (max 100).

Tokens do not expire. Treat them like passwords. A user's tokens are revoked when they log out via POST /api/v1/logout, and every other token is revoked when that user changes their password. You can also clear them from the database if a device is lost.

Changing a password over the API requires the current password in the request body, and login rejects any account that is not Active — deactivating a staff member in the admin cuts off both the web panel and the API.

Every route is defined in routes/api.php in the application root.

⬆️

Updating to a New Version

Back up first, every time. Export your database (Admin → Backups, or mysqldump) and copy your .env file and storage/app folder somewhere safe before you overwrite anything.

Download the new release ZIP from your CodeCanyon downloads page.
Put the site into maintenance mode: php artisan down
Replace the application files, but keep these: your .env, storage/ (uploads and logs), and public/storage if it is a real symlink.
Reinstall dependencies: composer install --no-dev --optimize-autoloader
Apply any new migrations: php artisan migrate --force
Clear stale caches: php artisan optimize:clear
Repair the uploads symlink if images 404: php artisan invoiceflow:install-assets
Bring it back up: php artisan up

Do not delete storage/installed.lock. It is what tells InvoiceFlow it is already set up. Removing it sends every visitor back to the installer.

If you customised any files, diff them against the new release before overwriting. Keeping your changes in a separate file or a git branch makes this far less painful next time.

If you run a queue worker, restart it after updating so it picks up the new code: php artisan queue:restart. See the Queue Worker section.

📄

Third-Party Licenses

InvoiceFlow bundles open-source libraries. Most use permissive MIT/BSD/Apache licenses; two are LGPL and worth knowing about:

dompdf (PDF invoice generation) is licensed under LGPL-2.1, and picqer/php-barcode-generator (barcode label sheets) under LGPL-3.0-or-later. Both are included unmodified as Composer dependencies; their license texts ship under vendor/ after composer install. Using them as-is places no obligation on your own code — only modifying the libraries themselves would.

The full list of bundled third-party libraries and their licenses is in credits.txt in the application root.

Introduction

Invoice Terminal

Product Catalog

Reports & Admin

System Architecture

Changelog

Server Requirements (VPS)

CPU

RAM

OS

Important Server Documentation

Install & Configure Nginx

Install & Configure MySQL

Install PHP & Extensions

Install Composer

Domain & DNS Configuration

SSL Setup with Certbot (HTTPS)

Shared Hosting Requirements

Laravel / InvoiceFlow

Laravel Setup on cPanel

Create Domain & Point to public/

Upload Project Files

Set PHP Version to 8.2+

Create MySQL Database

Configure .env

Install Composer & Run Artisan

Set Permissions & Enable SSL

Test the Installation

Server Requirements

PHP & Extensions

Database & Server

Installation Guide

Download from Envato

Upload Project to Server

Configure .env & Choose Install Method

Set Folder Permissions

Test the Installation

Configuration

General Settings

Thermal Receipt Printer

Mail (SMTP)

Queue Worker & Background Jobs

1. Enable background sending

2a. Recommended (VPS): Supervisor

2b. Fallback (shared hosting): Cron

Features

Dashboard

Invoice Terminal

Product Catalog

Cash Register & Shifts

Customer Accounts & Loyalty

Roles & Permissions

Settings & Utilities

REST API

Getting a token

Endpoint groups

Updating to a New Version

Third-Party Licenses

Create Domain & Point to `public/`
